產(chǎn)品目錄 >> OMAL >> 帶注塑電纜連接器
OMAL 帶注塑電纜連接器 DIN43650

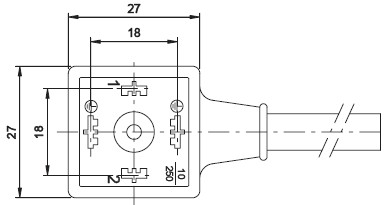

OMAL A型注塑帶電纜連接器24V 針距 ：18mm 黑色和透明帶指示燈 保護電路 蓄流電路 電壓有：24V 48VDC 110V 220VAC 電流：10A 電纜長度：1,2,5,10米 常用型號：AB2AA1U220 AB3AA1U2206 AG2AA1U220 AG3AA1U2206 24V AB2GR1U220
250V AB2KR1U220 10/50V AB2MR1U220 70/250V AB2NR1U220 AB2BR1U220 AB2CR1U220 AB2QR1U220
OMAL 10/50 AB3BYE1U920 AG3BYE1U920 OMAL 70/250 AB3CYE1U920 AG3CYE1U920 110V AB2JR1U220 48V AB2HR1U220 AB2RR1U220
|
 |
 |
 |

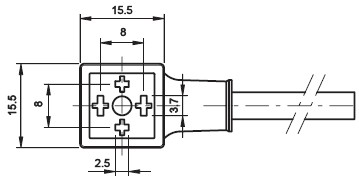

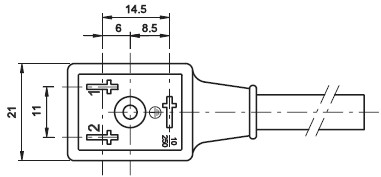

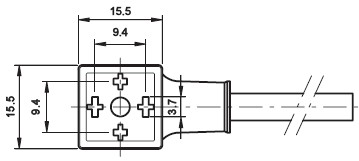

OMAL B型注塑電磁閥連接器10/50V 黑色和帶燈 8mm和9.4mm針距，防護等級IP67,DIN40050,溫度范圍：-40°C / +125°C。
常用型號：BB5AA1U2200 BG5AA1U2200 BB2AA1U2206 BG2AA1U2206
24V BB5GR1U2200 BB2GR1U2200 48V BB5HR1U2200 BB2HR1U2200
110V BB5JR1U2200 BB2JR1U2200 250V BB5KR1U2200 BB2KR1U2200
10/50V BB5MR1U2200 BB2MR1U2200 70/250V BB5NR1U2200 BB2NR1U2200 BB5BR1U2200 BB2BR1U2200 BB5CR1U2200 BB2CR1U2200 BB5QR1U2200 BB2QR1U2200 BB5RR1U2200 BB2RR1U2200
|
|
 |
 |
 |

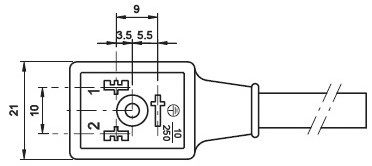

OMAL C型注塑接頭 黑色和帶燈 針距：8和9.4mm IP68 電纜長度可定制
常用型號：CB6AA1U120 CB7AA1U820 CG6AA1U120 CG7AA1U820
24V CB6GR1U220 48V CB6HR1U220 110V CB6JR1U220
250V CB6KR1U220 10/50V CB6MR1U220 CB6BR1U220
70/250V CB6NR1U220 CB6CR1U220 250V CB6LA1U220
CB2AA1U120 CB3AA1U820 CG2AA1U120 CG3AA1U820\
24V CB2GR1U120 48V CB2HR1U120 110V CB2JR1U120 250V CB2KR1U120
10/50V CB2MR1U120 CB2NR1U120 CB2BR1U120 CB2CR1U120 250V CB2LA1U120
|
|
